Unmanned System Data Protocol and Format


This week’s blog will focus on DJI’s Inspire 2, a professional quality quadrotor Unmanned Aerial System (UAS) designed for filmmakers.  The UAS is capable of speeds of up to 58 mph and has an endurance of 27 minutes through the use of dual, redundant, battery packs (Inspire 2, 2017).  In addition to an integrated first-person view (FPV), 2 axis, 4K camera built into the nose, the aircraft can support a variety of 360 degree rotatable gimbled film cameras, including DJI’s top of the line Zenmuse X7, capable of recording in 6K CinemaDNG at 30 frames per second (fps) or 5.2K Apple ProRes video formats at 30 fps; both formats are capable of 60 fps rates at reduced quality (Inspire 2, 2017; Zenmuse X7, 2017).  The Zenmuse X7 camera is also capable of capturing DNG RAW 20 fps (burst mode) still photos at 24 megapixels (MP), as well as the commonly used JEPG format (Zenmuse X7, 2017).
 DJI. (2017). Inspire 2 [digital image]. Retrieved from https://www.dronethusiast.com/wp-content/uploads/2017/01/dji-inspire-2-pic.png

The Inspire 2 is capable of recording and simultaneously transmitting imagery captured by the gimbled film camera.  Seamless image processing and storage of recorded images is accomplished through the use of on onboard processor called CineCore 2.0 and an integrated solid state drive, called CINESSD (Inspire 2, 2017).  The use of an onboard processor is critical as the high quality CinemaDNG format has bit rates of 4.44 Gbps; the burst rate for DNG RAW still images is higher at 4.70 Gbps (Zenmuse X7, 2017).  Recorded video footage is processed by CineCore and then routed to the CINESSD (for CinemaDNG or AppleProRes formats), or to a Micro SD card for lower quality 4K H.264 and H.265 video formats (MOV, MP4) (Inspire 2, 2017).  The CINESSD and Micro SD storage devices both utilize the FAT32/exFAT file format system, as this commonly utilized formatting method eliminates the need for additional software to transfer video and images files from the storage devices upon landing.  Maximum onboard storage capacity is 480 GB for the CINESSD and 128 GB for the Micro SD card (Inspire 2 User Manual, 2017).


DJI. (2017). Workflow [digital image]. Retrieved from https://www.dji.com/inspire-2?site=brandsite&from=nav
Footage captured by the onboard FPV and film cameras is also transmitted to the operator on the ground.  While it is possible for a single operator to record footage and operate the UAS, the UAS is ideally operated by a dedicated film camera operator and dedicated pilot.  This method of operation enables the camera operator to focus on the quality of shot while the pilot maneuvers to avoid obstacles and obtain the desired perspective.  Seamless video footage is broadcast to the ground operator/s at 1080i, at up to 4.3 miles over 2.4 GHz or 5.8 GHz frequencies utilizing DJI’s Lightbridge video transmission technology (Inspire 2, 2017).  This live imagery can also be directly broadcast to media outlets by connecting the UAS remote controller to a video input on a news station’s satellite truck (Inspire 2, 2017).

The Inspire 2 utilizes a host of onboard sensors to maintain attitude and altitude in flight and detect and avoid obstacles.  Aircraft positioning and attitude are maintained through the use of GPS and redundant internal measurement units (IMU) and barometers (Inspire 2, 2017).  Obstacles avoidance sensors include forward and downward facing pairs of stereo vision sensors which enable the UAS to detect obstacles approximately 100 feet away.  This enables the UAS to return to home autonomously at speeds up to 34 mph without risk of obstacle collision (Inspire, 2017).  These sensors are also utilized for hovering and position keeping when a GPS signal is not available.  An upward facing infrared sensor is utilized to detect and avoid obstacles up to 16 feet above the UAS (Inspire 2, 2017).  Inputs from the onboard sensors are fed into the intelligent flight controller for navigation and avoidance of detected obstacles.

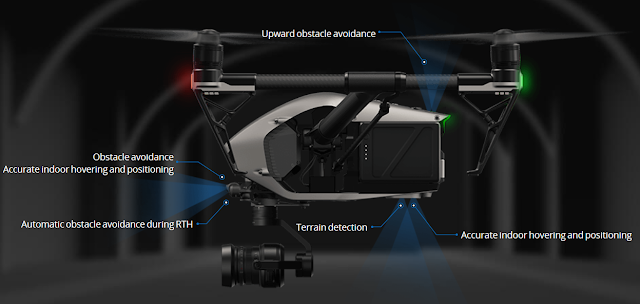

DJI. (2017). Sense and Avoid [digital image]. Retrieved from https://www.dji.com/inspire-2?site=brandsite&from=nav

Power for the onboard sensors, cameras, and rotors is provided through the use of dual redundant batteries.  The use of dual batteries enables the UAS to execute a safe landing utilizing one battery in the event a problem occurs with the other battery (Inspire 2, 2017).  Each lithium polymer (LiPo) battery has a capacity of 4280 mAh, a rating of 98 Wh, and an output voltage of 22.8 V for onboard motors, sensors, and cameras (Inspire 2 Specs, 2017).  Maximum battery life of 27 minutes is obtained utilizing the optional X4S film camera; use of the more powerful X5S camera decreases endurance slightly to 25 minutes (Inspire 2, 2017).  Battery endurance utilizing the top of the line X7 camera is not available.

One alternative data treatment strategy to improve the Inspire 2 would be the use of a lossless video compression algorithm to increase the current 1080i quality of live video streams for use by media outlets or filmmakers.  The ability to downlink higher quality imagery would reduce the need to store recorded imagery on the internal CINESSD, potentially eliminating instances where the available space remaining on the hard drive, rather than battery endurance, was the limiting factor to flight time.  For example, the currently utilized 480 GB CINESSD drive can only record 108 seconds utilizing the highest quality CinemaDNG recording setting which has a bit rate of 4.44 Gbps.  The ability to downlink high quality imagery could also reduce the size of the storage drive required, potentially allowing for larger batteries which would increase flight endurance.

References:
Inspire 2. (2017). Retrieved from https://www.dji.com/inspire-2?site=brandsite&from=nav.
Inspire 2 Specs. (2017). Retrieved from https://www.dji.com/inspire-2/info#specs.
Inspire 2 User Manual. (2017). Retrieved from https://dl.djicdn.com/downloads/inspire_2/ 20171013/ INSPIRE_2_User_Manual_EN.pdf.
Zenmuse X7. (2017). Retrieved from https://www.dji.com/zenmuse-x7?site=brandsite&from=nav.
